Yes - the bulk of Porsche titanium lug bolts are M14 x 1.5 thread pitch. That applies to the major model lines – the 911, Cayenne, Macan, and Boxster. The M14 denotes a nominal thread diameter of 14 mm. The 1.5 denotes a thread pitch of 1.5 mm. When I obtain or specify Porsche titanium lug nuts for any of these platforms, the first check is to ensure M14 x 1.5. Get this incorrect and you may cross-thread an aluminum hub, or worse, have a fastener break at speed. Neither is acceptable.
Understanding Porsche Titanium Lug Bolts: Specifications and Dimensions
Thread Pitch and Why M14 × 1.5 Matters
All of Porsche's new vehicles employ the same engine, M14 × 1.5. This is unusual. Many of the VAG group platforms utilize M14 x 1.25. If you try to use a 1.25 pitch bolt in a 1.5 pitch hub, the threads will be destroyed straight away. Always verify your specific chassis code (e.g. 992, 971, 95B) before placing a big purchase. Material test certificates (MTCs) should establish metal composition and thread geometry.
Length Variants: 29 mm, 36 mm, and 43 mm
The lug bolt length is affected by the wheel angle and the width of the spacer. The standard lengths are 29 mm, 36 mm, and 43 mm. These lengths are for OEM wheels, thin spacers (5-10 mm), and thicker track spacers. Safe clamping requires a minimum of 8-10 complete thread engagements in the hub, per industry standard. The risk of liability is mixing lengths within a set without sufficient engineering evaluation.
Seat Type and Hex Size

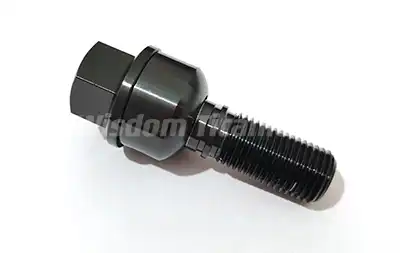

Original Porsche nut design with a movable ball seat (R14 radius). The bolt shaft rotates, and this floating collar maintains its position against the wheel seat. This protects alloy or forged wheels from cosmetic harm. All three lengths have the same 19 mm hex size, so all your tools will be able to utilize the same sockets.
Benefits of Using Titanium Lug Bolts for Porsche Vehicles
Weight Reduction and Rotational Mass
Titanium (Grade 5) has a density of 4.43 g/cm³ compared to steel's density of 7.8 g/cm³, making titanium about 43% lighter. By changing just 20 lug nuts on a Porsche 911 from steel to titanium, you may save 1.5 to 2.5 lbs per vehicle of spinning unsprung mass. Less rotational mass immediately enhances the steering response, the braking feel, and the suspension response. On track days, drivers may quantify this by how consistent their laps are.
Corrosion Resistance Without Coating Dependency
Porsche titanium lug bolts form an oxide layer that is stable and self-healing. This layer resists water, road salt, and brake dust. In coastal places like the UK or the Pacific Northwest, steel lug nuts tend to snap within the hub after two or three winters. Often you’ll need to do hub drilling to get a seized bolt out, which costs a lot more than the price difference between steel and titanium. Corrosion resistance is such that even grade 5 titanium is not in this danger group.
Strength Credentials That Hold Up to Scrutiny
Our bolts are made of Ti-6Al-4V metal, which has a compressive strength of 900-1,050 MPa (130,000-152,000 psi). This is equal to or stronger than ISO 898-1 Class 10.9 steel. This material may also be utilized for safety-critical wheel bolts since the threads can be rolled rather than cut, which extends the wear life. Each batch should be accompanied by an MTC stating that it conforms to ASTM B348 and a product data sheet.
Titanium vs. Steel Lug Bolts for Porsche: A Comparative Analysis
Mechanical Properties Side by Side
Lug nuts made of steel Class 10.9 have a tensile strength of about 1,040 MPa and a yield strength of about 940 MPa. These numbers are about the same for Grade 5 titanium, but it has better elongation (about 10% vs. 8% for steel), which means the fastener can handle shock loads better before breaking. This behavior is important when stopping quickly in an emergency or hitting a curb.
Total Cost of Ownership
Three to five times as much as steel bolts, titanium bolts cost more to buy. But when you look at how often they need to be replaced, the work that needs to be done to fix corrosion, and the brand premium that a titanium SKU commands in the aftermarket, the economics change. When brands sell titanium wheel bolt kits under their own names, they usually charge four to six times what the kits cost to ship, which is not possible with steel.
This is how the overall cost of ownership stacks up in some important areas:
- Replacement frequency: Steel bolts in salt-belt markets typically need replacement every three to five years due to corrosion. Grade 5 titanium bolts show no measurable corrosion degradation over the same period, reducing repeat procurement cycles.
- Service labor exposure: A seized steel lug bolt requiring hub repair can cost $200–$600 in labor per corner. Titanium eliminates this failure mode, lowering the warranty liability exposure for aftermarket brands.
- Brand margin potential: Titanium wheel bolt kits retail at $150–$350 per set in the US aftermarket. The same set in steel rarely exceeds $40–$60, making titanium the only viable path for brands building a premium SKU matrix.
Because of these changes in cost, procurement managers at performance brands see titanium fasteners as a way to make more money, not just as a way to improve technology.
OEM vs. Aftermarket Sourcing Risk
OEM Porsche bolts have special surface treatments and quality chains that are kept track of. For aftermarket Porsche titanium lug bolts to pass fit-and-function testing, they need to match OEM geometry. This includes the floating ball seat radius and thread engagement depth. There is only one question that shows how trustworthy a supplier is: can they give you full batch tracking and a Go/No-Go gage report before shipping?
How to Select and Install Porsche Titanium Lug Bolts
Matching Specifications to Your Wheel Configuration
Know the thread pitch ( M14 x 1.5 ) , the length you need ( dependent on the stack of spacers), and the kind of seat you require ( ball seat R14 for OEM Porsche wheels) before you place your purchase. Some aftermarket monoblock wheels need a conical (60°) seat. Ordering ball-seat bolts for a conical-seat wheel will stress the wheel bore at one place, and that is not safe.
Installation Torque and Anti-Seize Protocol
For most of the newer platforms, Porsche’s factory torque spec for the M14 nut bolts is 130 Nm (96 ft-lbs), with certain GT versions recommending up to 160 Nm. Always verify the specifications of the chassis to be sure. If titanium is pressed dry against a steel hub, it might gall (cold join). Put a little coating of anti-seize based on copper on the threads before fitting them together. Using an impact gun can over-torque the part and damage the finish.
Inspection and Maintenance Schedule
Tighten after 50 miles after taking off a wheel. Look at the threads every time the tire goes around to check if they are wearing or corroding at the hub end. Replace any bolt that has thread deformation or surface damage. Batch traceability is linked to a particular MTC by using a lot number, so that replacement is fast and straightforward without having to re-qualify the complete source of supply.
Where and How to Purchase Authentic Porsche Titanium Lug Bolts
Evaluating a Porsche Titanium Lug Bolt Supplier
If you’re purchasing titanium lug bolts from a reputable business, they will have the ISO 9001 certification, MTC’s that satisfy ASTM B348 criteria, Go/No-Go thread gage reports, and salt spray test data (minimum 500 hours per ISO 9227). Suppliers who cannot provide this documentation on request should not be permitted to supply safety-essential fasteners regardless of what they charge.
MOQ, Mixed-Length Batches, and Pricing Structure
Can mixed-length batches (29, 36 & 43 mm) be mixed, or should they be classified as independent MOQs? This is the issue for aftermarket businesses that wish to extend their SKU coverage to the 911, Cayenne, Macan, and Boxster platforms. Usually, for certified manufacturers, the MOQ is 200 pieces per SKU, and pricing starts pricing up from there. Manufacturers may prevent inventory separation by proving mixed-batch flexibility before committing to it.
Protecting Your Brand IP During Procurement
Any brand purchasing private label titanium screws should require a signed NNN agreement (Non-Disclosure, Non-Use, Non-Circumvention) before providing engineering drawings. This prevents the provider from photocopying your specification and selling it to others. If the seller says no, there’s a business risk that can’t be justified by a price decrease.
Conclusion
The Porsche titanium lug bolts for the 911, Cayenne, Macan and Boxster are M14 × 1.5. Titanium grade 5 (Ti-6Al-4V) is 40% lighter than steel and has the strength to meet safety-essential wheel bolt requirements. Titanium is the best material to use for a premium fastener SKU for aftermarket companies since it has high technical performance, can be used under a private name, and does not corrode. Before confirming a batch order, review the supplier documentation to verify that the thread size, length, and seat geometry are proper.
FAQ
1. Are all Porsche models compatible with M14 × 1.5 lug bolts?
Most modern Porsche platforms — 911 (991/992), Cayenne (9Y0/9YA), Macan (95B), and Boxster/Cayman (981/982) — use M14 × 1.5. However, always verify against your specific chassis code, as older 996-generation 911s may have different specifications. Cross-referencing the VIN or consulting an OEM parts database before ordering eliminates fitment errors.
2. What torque should I apply to titanium lug bolts on a Porsche?
Follow the Porsche factory specification for your chassis — typically 130 Nm (96 ft-lbs) for most platforms, up to 160 Nm for GT variants. Use a calibrated torque wrench and apply copper-based anti-seize to prevent galling. Do not use an impact gun during final installation.
3. Can titanium lug bolts handle track use?
Yes. Grade 5 Ti-6Al-4V achieves tensile strength of 900–1,050 MPa, which is comparable to Class 10.9 steel. Rolled threads provide superior fatigue resistance under repeated thermal and mechanical cycling, making them appropriate for track day and motorsport applications when installed correctly.
4. What documentation should I request from a titanium bolt supplier?
Request a material test certificate (MTC) confirming ASTM B348 Ti-6Al-4V compliance, a Go/No-Go thread gauge report, salt spray test data, and ISO 9001 certification. For private-label programs, also require a signed NNN agreement before sharing drawings.
5. What is the minimum order quantity for private-label titanium lug bolts?
Standard MOQ from a qualified manufacturer is 200 pieces per SKU. Confirm whether mixed-length combinations (e.g., 29/36/43 mm) count toward a single MOQ threshold, as this affects SKU matrix economics significantly.
Get Custom Porsche Titanium Lug Bolts from Wisdom Titanium
The Grade 5 Ti-6Al-4V Porsche titanium lug bolts that Wisdom Titanium sells are M14 × 1.5 and come in lengths of 29 mm, 36 mm, and 43 mm. They have a smooth finish and a 19 mm hex. We make titanium lug bolts and are based in Baoji Titanium Valley, which is China's biggest combined titanium production base. As standard, we provide full MTC paperwork, Go/No-Go thread reports, and NNN agreements. With choices for private marking and laser engraving, the MOQ starts at 200 pieces. Please email sales@wisdomtitanium.com to get a price or a sample.
References
1. ASTM International. ASTM B348: Standard Specification for Titanium and Titanium Alloy Bar and Billet. ASTM International, 2019.
2. Boyer, R., Welsch, G., & Collings, E. W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.
3. ISO. ISO 898-1: Mechanical Properties of Fasteners Made of Carbon Steel and Alloy Steel. International Organization for Standardization, 2013.
4. ISO. ISO 9227: Corrosion Tests in Artificial Atmospheres — Salt Spray Tests. International Organization for Standardization, 2017.
5. Lütjering, G., & Williams, J. C. Titanium. Springer, 2007.
6. Society of Automotive Engineers. SAE J1965: Wheel and Rim Standards Manual — Bolt and Stud Torque Recommendations. SAE International, 2020.
