A Complete Guide to Metric vs. Imperial Titanium Fastener Sizes

An engineer ordered metric titanium fasteners. The shipment arrived with imperial sizes. Assembly halted for three weeks, awaiting the correct parts. Production targets missed, penalties triggered, customer relationships strained. This preventable disaster stemmed from fundamental confusion between measurement systems that should never plague professional procurement, yet it happens more often than the industry admits.

The metric versus imperial divide creates more than simple conversion headaches. Thread forms differ. Pitch specifications diverge. Dimensional tolerances follow separate standards. Interchange attempts between systems risk stripped threads, improper preload, and catastrophic assembly failures. Yet global commerce demands navigating both systems since North American manufacturing predominantly uses imperial while European and Asian industries standardise on metric measurements.

Definitions and Parameters of Metric and Imperial Titanium Fasteners

Metric titanium fasteners follow the International System of Units (SI) using millimetres as the primary dimensional measurement. The designation system communicates critical specifications through standardised nomenclature. An M6 bolt identifies a 6-millimetre nominal diameter measured at the thread major diameter. The thread pitch—the distance between adjacent thread crests measured parallel to the axis—appears after the diameter when finer than the coarse standard. An M6×1.0 specification indicates 6mm diameter with 1.0mm pitch, while M6 alone implies the standard coarse pitch of 1.0mm for this size.

The thread angle in metric fasteners measures 60 degrees, forming the fundamental geometry where thread flanks intersect. This angle remained consistent across metric sizes, simplifying thread form calculations and tooling requirements. The thread depth, crest radius, and root radius follow proportional relationships to the pitch dimension, creating geometric similarity across the size range. ISO standards, including ISO 68-1 and ISO 262, codify these geometric relationships, ensuring dimensional consistency regardless of manufacturer or geographic location. This standardisation enables global interchangeability where metric titanium fasteners from Asian suppliers thread seamlessly into European tapped holes.

Imperial fasteners employ inches and fractions thereof, though the Unified Thread Standard (UTS) developed during World War II standardised American, British, and Canadian threading. The designation format differs markedly from metric conventions. A 1/4-20 UNC bolt specifies 0.25-inch nominal diameter (1/4 inch) with 20 threads per inch (TPI) in the Unified National Coarse series. The thread count per inch inversely relates to pitch—higher TPI numbers indicate finer threads with closer spacing. Converting between TPI and metric pitch requires mathematical calculation: pitch (mm) = 25.4 / TPI. Thus, 20 TPI equals approximately 1.27mm pitch, distinctly different from metric standard pitches.

The 60-degree thread angle matches between systems, providing one point of geometric similarity. However, thread depth calculations, tolerance specifications, and dimensional relationships diverge. The UTS defines separate series including UNC (Unified National Coarse), UNF (Unified National Fine), and UNEF (Unified National Extra Fine), each with different thread counts for given diameters. This multi-series approach contrasts with metric standards, where coarse and fine pitches exist but follow more systematic progressions. The imperial system also employs fractional sizing like 1/4", 5/16", 3/8", creating increments that don't correlate cleanly to metric whole-number millimetre dimensions.

Differences Between Metric and Imperial Titanium Alloy Fasteners

Dimensional progression patterns distinguish the systems fundamentally. Metric titanium fasteners advance through whole-number millimetre increments in commonly available sizes: M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M16, M20, M24. Baoji Wisdom Titanium supplies sizes from M1.6 through M24, covering the full range of standard applications. This logical progression simplifies specification and inventory management since size relationships remain arithmetically straightforward. An M8 bolt has exactly double the diameter of an M4, and this proportional relationship extends throughout the size range.

Imperial sizes follow fractional inch progressions that appear less systematic to metric-trained engineers. Common sizes include #4-40, #6-32, #8-32, #10-24, 1/4-20, 5/16-18, 3/8-16, 1/2-13, where the numbered sizes below 1/4" use arbitrary designations. The fraction-based sizing above 1/4" creates increments of 1/16" (0.0625") that don't correlate to metric whole numbers. A 1/4" fastener equals 6.35mm, falling between M6 and M8 without matching either. This dimensional mismatch prevents direct substitution and complicates conversion when adapting designs between measurement systems.

Thread pitch standards differ substantially, affecting thread engagement and installation characteristics. Metric coarse pitch follows systematic relationships where M6 uses 1.0mm pitch, M8 employs 1.25mm, M10 specifies 1.5mm, M12 takes 1.75mm, continuing in predictable progressions. Fine pitch alternatives exist at tighter spacings for applications requiring maximum thread engagement in limited depths. Imperial coarse threads show less systematic TPI progressions: 1/4-20, 5/16-18, 3/8-16, 1/2-13, where TPI decreases as diameter increases but without simple mathematical relationships. This irregularity complicates memorisation and increases specification errors when engineers work across both systems.

Strength specifications and property classes are organised differently. Metric fasteners employ property classes like 8.8, 10.9, or 12.9 for steel, though titanium typically references the alloy grade directly. Grade 5 titanium (Ti-6Al-4V) delivers 950 MPa tensile strength and 880 MPa yield strength regardless of measurement system. Imperial grades for steel use SAE classifications or ASTM specifications, though again, titanium references alloy grades. The key difference involves how torque specifications correlate to these strength values—metric torque values in Newton-meters require conversion to pound-feet for imperial applications, and the calculation must account for thread pitch differences affecting torque-tension relationships.

Which Industries/Projects Should Choose Metric or Imperial?

Geographic market focus heavily influences measurement system selection. European manufacturing overwhelmingly employs metric standards following European Union standardisation and long-standing national preferences. Aerospace programs under EASA certification, automotive production for European brands, and industrial equipment manufactured for EU markets specify metric titanium fasteners throughout. Asian manufacturing similarly standardises on metric systems in Japan, China, South Korea, and most developing industrial economies. Designing products for these markets using imperial measurements forces costly conversion or limits market accessibility when local suppliers and service facilities work exclusively in metric dimensions.

North American industries maintain a strong imperial presence despite metric adoption attempts. Aerospace programs under FAA jurisdiction frequently employ imperial fasteners, though modern aircraft like Boeing 787 transitioned substantially toward metric. Automotive manufacturing in the United States shows mixed usage, with domestic brands historically favouring imperial while transplant operations from European or Asian manufacturers introduce metric standards. Oil and gas industries, particularly in North American production regions, specify imperial pipe threads and fasteners matching legacy infrastructure. Marine applications are split between metric (European vessels, naval programs) and imperial (American recreational and commercial maritime), depending on vessel origin and operational region.

Aerospace and defence applications demand careful measurement system consideration based on program nationality and certification authority. Commercial aircraft programs increasingly adopt metric standards, recognising global supply chain advantages and international operational environments. Military specifications vary by country—U.S. Department of Defence standards traditionally employed imperial measurements, though recent programs show metric migration. Space programs split with NASA historically imperial, while the European Space Agency and commercial space ventures increasingly standardise metric. The critical nature of aerospace applications means measurement system errors risk catastrophic consequences, making consistent standard selection throughout programs non-negotiable.

Medical device manufacturing gravitates toward metric, given global regulatory frameworks and international market distribution. FDA-regulated devices sold globally benefit from metric specifications aligning with European, Asian, and most international medical standards. Surgical instruments, implantable devices, and diagnostic equipment increasingly employ metric titanium fasteners supporting biocompatible, corrosion-resistant, non-magnetic characteristics that titanium provides. The industry's international scope makes metric selection logical despite U.S. manufacturing traditions, since devices certified for European markets under MDR regulations require metric documentation and components.

Conversion Challenges and Practical Solutions

Mathematical conversion between systems appears straightforward: multiply inches by 25.4 to obtain millimetres, or divide millimetres by 25.4 for inch equivalents. However, this arithmetic simplicity masks practical complications. Converting 1/4-20 UNC to metric equivalent requires more than translating 0.25" to 6.35mm. The 20 TPI becomes 1.27mm pitch, falling between standard metric coarse pitches. No metric standard specification matches 1/4-20 dimensions precisely. The nearest metric approximations—M6×1.0 or M8×1.25—differ sufficiently in diameter and pitch to prevent interchangeability. This dimensional mismatch means conversion requires design modification rather than simple specification translation.

Thread form differences compound conversion challenges beyond simple dimensional translation. Even when diameters and pitches approximately match through calculation, the tolerance classes, thread depths, and geometric details diverge. Attempting to tap an M6×1.0 hole then install a 1/4-20 bolt (or vice versa) creates interference and galling since the thread flanks don't align properly despite similar major diameters. The only reliable conversion approach involves re-engineering the assembly to accommodate the target measurement system's standard fasteners rather than attempting hybrid solutions mixing systems.

Practical conversion strategies for existing designs include parallel hole provisions where space permits. Provide both metric and imperial tapped holes in components requiring service across different market regions. This redundancy increases manufacturing cost but enables field flexibility using locally available fasteners. Alternatively, design around hole sizes, minimising fastener specification sensitivity—through-holes with nuts rather than tapped holes provide more conversion flexibility. When conversion proves unavoidable, completely redesign threaded interfaces to target system standards rather than attempting approximations that compromise thread engagement and assembly integrity.

 Source Precision Metric Titanium Fasteners From Baoji Wisdom Titanium

Navigating metric versus imperial measurement systems requires understanding extending beyond simple conversion calculations into fundamental dimensional incompatibilities affecting thread engagement, installation characteristics, and assembly reliability. The systems were developed independently, creating specifications that appear similar superficially but differ critically in thread pitch, tolerance classes, and geometric detail, preventing interchangeability. Recognition of these fundamental differences prevents costly cross-contamination errors while enabling strategic measurement system selection, optimising global market access, supply chain efficiency, and long-term support infrastructure.

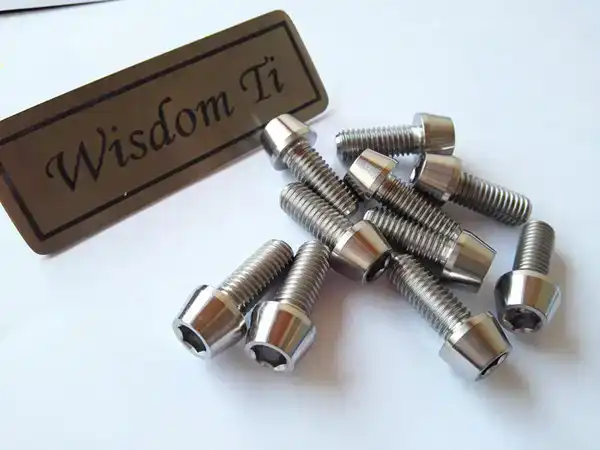

Baoji Wisdom Titanium specialises in metric titanium fasteners, leveraging our location within Baoji Titanium Valley, China's most comprehensive titanium manufacturing cluster. The vertically integrated regional ecosystem from titanium sponge through precision components provides supply chain advantages, delivering competitive pricing and responsive delivery schedules. Our metric size range, from M1.6 through M24 encompasses standard applications across aerospace, medical, marine, electronics, and industrial sectors demanding high-performance fastener solutions.

Customisation capabilities address unique application requirements beyond standard catalogue offerings. Our experienced R&D team collaborates on specification development, material selection, and design optimisation, ensuring fasteners suit specific operating environments and performance requirements. Complete raw material inventory and mature production technology support both prototype quantities and volume manufacturing with stable pricing, protecting project budgets from commodity market volatility.

Manufacturing expertise extends to specialised surface treatments, including PVD coating, creating black titanium screws with enhanced wear resistance and distinctive aesthetics. Thread pitch options, head configurations, and drive types can be customised to application requirements. The technical support team provides engineering analysis, including torque calculations, thread engagement verification, and installation guidance, optimising assembly reliability and component performance.

For detailed specifications, material property documentation, dimensional verification, or quotations on metric titanium fasteners optimised for your application requirements, contact Baoji Wisdom Titanium today. Our team stands ready to discuss your measurement system selection, provide technical guidance on metric specifications, and deliver precision fasteners supporting your engineering excellence. Send your inquiry to sales@wisdomtitanium.com, including application details, operating environment specifications, quantity requirements, and delivery schedules.

FAQs

Q1: Can I mix metric and imperial titanium fasteners?

A: No. Pitch and tolerance differences cause cross-threading and immediate damage. Use the same system or convert holes with proper re-tapping or thread inserts.

Q2: Which measurement system should I use for new product designs?

A: Metric is usually best for global products due to ISO standards and worldwide availability. Imperial may still suit North American industries with established inch-based supply chains.

Q3: Can I convert torque values directly between Nm, lb-ft, and lb-in?

A: You can convert units, but torque equivalence is not guaranteed because thread pitch affects preload. Always use torque values specified for the exact fastener size, pitch, and coating.

References

1. ISO. (2018). ISO 68-1:1998 ISO General Purpose Screw Threads — Basic Profile — Part 1: Metric Screw Threads. Geneva: International Organization for Standardization.
2. ISO. (2018). ISO 262:1998 ISO General Purpose Metric Screw Threads — Selected Sizes for Screws, Bolts and Nuts. Geneva: International Organization for Standardization.
3. ASME. (2019). ASME B1.1-2019 Unified Inch Screw Threads (UN and UNR Thread Form). New York: American Society of Mechanical Engineers.
4. Bickford, J.H. (2008). Introduction to the Design and Behavior of Bolted Joints (4th Edition). Boca Raton, FL: CRC Press.
5. Donachie, M.J. (2000). Titanium: A Technical Guide (2nd Edition). Materials Park, OH: ASM International.
